    pit type multi levels parking system,hydraulic pit type parking lift

    Ask Lasest Price
    Brand Name : QDMY
    Certification : ISO & CE
    Model Number : PJS-1+1; PJS-2+1; PJS-3+1
    Price : $2500-3000
    Delivery Time : 30days
    Payment Terms : 30%TT in advance, 70%TT before shipping
    Supply Ability : 1000 sets/month
    • Product Details
    • Company Profile

    pit type multi levels parking system,hydraulic pit type parking lift

    Product Specifications:

    Brand NameSTMY
    Model No.

    PJS(-1+1); 1 level above ground, 1 level underground in a pit

    PJS(-2+1); 1 level above ground, 2 levels underground in a pit

    PJS(-3+1); 1 level above ground, 3 levels underground in a pit

    TypePit design parking system
    Mode of OperationsKeys/Manual Control buttons
    Car Capacity

    ≤2000kgs; 2500kg

    Mode of drive

    Motor+Chain / Hydraulic +Chain

    Car Size (L×W×H)

    5000mm×1850mm×1550mm;

    5000mm×1850mm×2050mm;

    Lifting speed

    5.6m/min

    Warning device

    Yes
    Safeguard deviceWhole protection and anti-falling hook device
    Rise Time50s
    Fall Time40s
    Work Noise< 80dB ( A )
    Voltage

    220V/240V/380V (cusomized)

    Motor Power2.2KW
    Maximum Working Pressure16 MPa
    Machine Net WeightNo more than 4650kgs
    Modes of operation

    Galvanized treatment and high-grade anti-corrosion paint

    Color

    Red, Blue, Grey, Yellow etc.

    (customized according to user demand )

    CertificationISO9001 and CE

    Actuating Device:

    1. Motor + Chain + Car Loading Pallet

    2. Motor + Steel Rope + Car Loading Pallet

    3. Hydraulic Pump + Cylinder + Steel Rope + Car Loading Pallet

    Working Principle:


    This is -1+1, -2+1, or -3+1 pit design parking system ( 1, 2, or 3 cars are underground in a pit, and 1 car above ground). The whole equipment can be lifted up and down as one unity, when the car platform is in the same line with the ground level, then the car can be collected or parked.

    Characteristics:

    • Simple operation
    • Safe and reliable
    • Convenient in and out of car
    • Ultra low noise
    • Small space occupation
    • Beautiful and fashionable in appearance
    • Easy and fast installation
    • Both suitable for home use and public use

    Online Video

    http://v.youku.com/v_show/id_XNjkzMzU3MjU2.htl

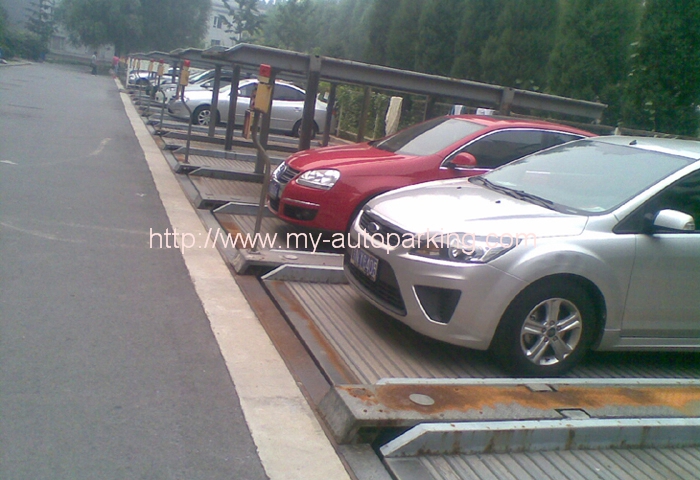

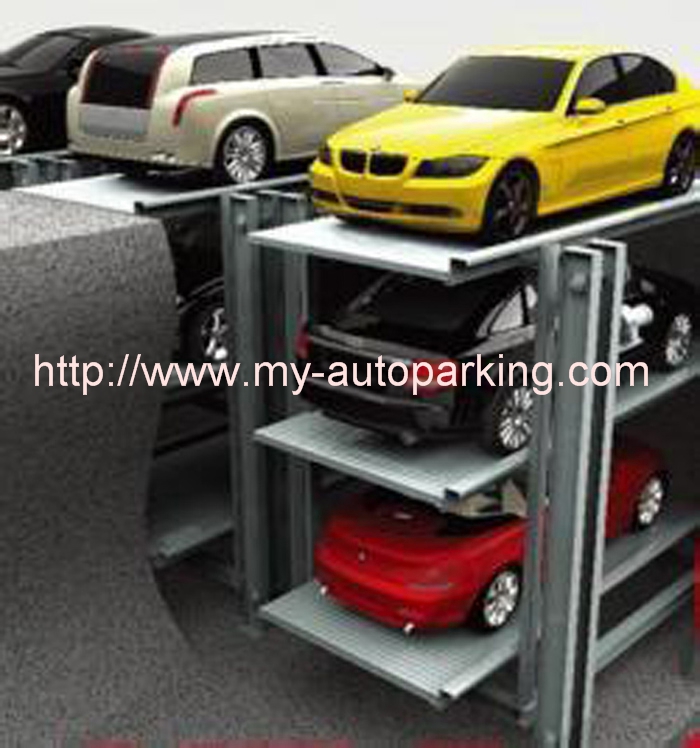

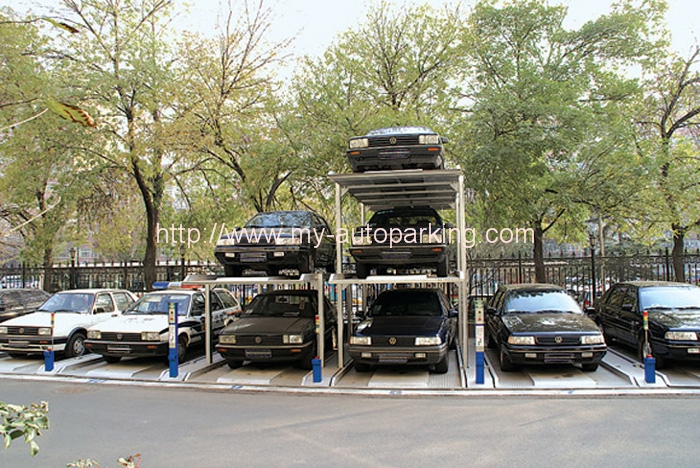

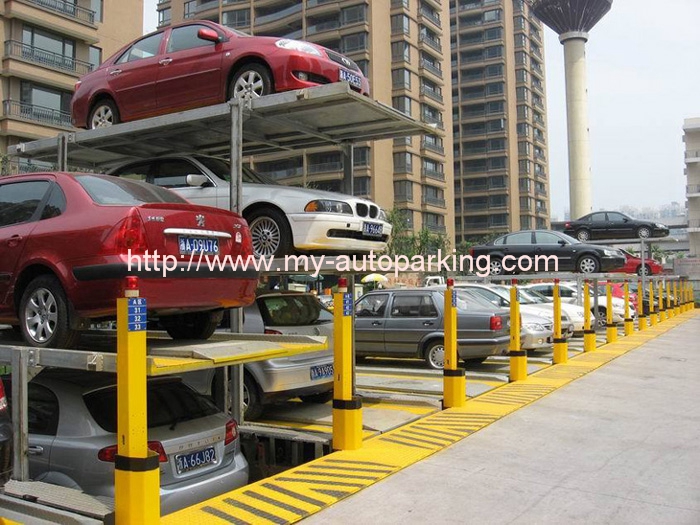

    Pictures:

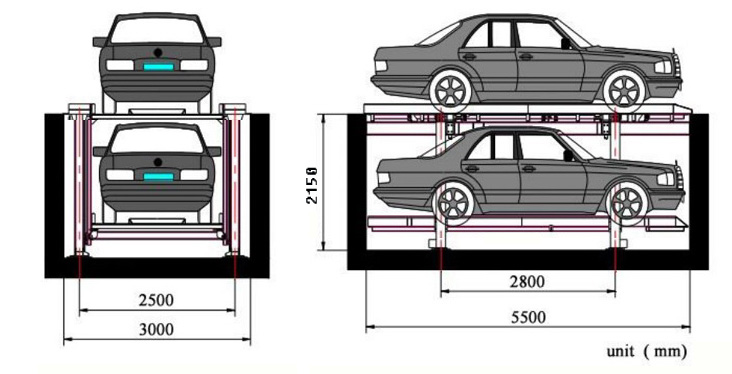

    Structure and Size information:
