Product Specifications:
| Brand Name | STMY |
| Model No. | QDMY-2-1P |
| Type | Four Post Tripple Parking Lift |
| Mode of Operations | Manual Buttons /Keys |
| Car Capacity | ≤2700kgs; 3600kgs |
Mode of drive | Hydaulic & Wire Rope |
Unlock method | Electric |
Post Height | Customized |
Warning device | Yes |
| Safeguard device | Whole process protection and anti-falling device |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | < 65dB ( A ) |
| Power | 110-415V, 1 or 3 Phases |
Oil Trays | 8 pieces |
| Treatment | Powder Coating (color optional) |
| HS Code | 84289020 |
| Certification | ISO9001 and CE |
Descriptions:
1. Storage parking system, mostly used for new cars or cars not
move frequently
2. The 2 platforms can be overlapped, the column can be shared upon
the parking space, more economical and safer
3. With front ramp and rear ramp, both front and rear direction can
be used for cars driving in or out. numerous lines of this
equipments can be installed together, only one access for cars
driving in or out, which saves the ground space
4. Simple transmission structure, platform is lifted by steel cable
which is connected to four corners of platform
5. Screw structure joint of steel cable connects to the platform,
maintenance personnel can adjust the balance of cables conveniently
6. With two stages lock system, automatic lock for every platform,
which prevent the upper platform to touch the below car
7. One unlock handle to release every platform
8. The cylinders have the pour rumsfeld device, which protects the
cylinders, more safer
9. Mold machining through the whole process so that the parts are
universal and interchangeable
10. Pass 120% capacity dynamic load text and 150% static load test.
11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop
Online Video Show:
https://youtu.be/wPIhy_vnPaI
https://youtu.be/pNkN4wb6_NE

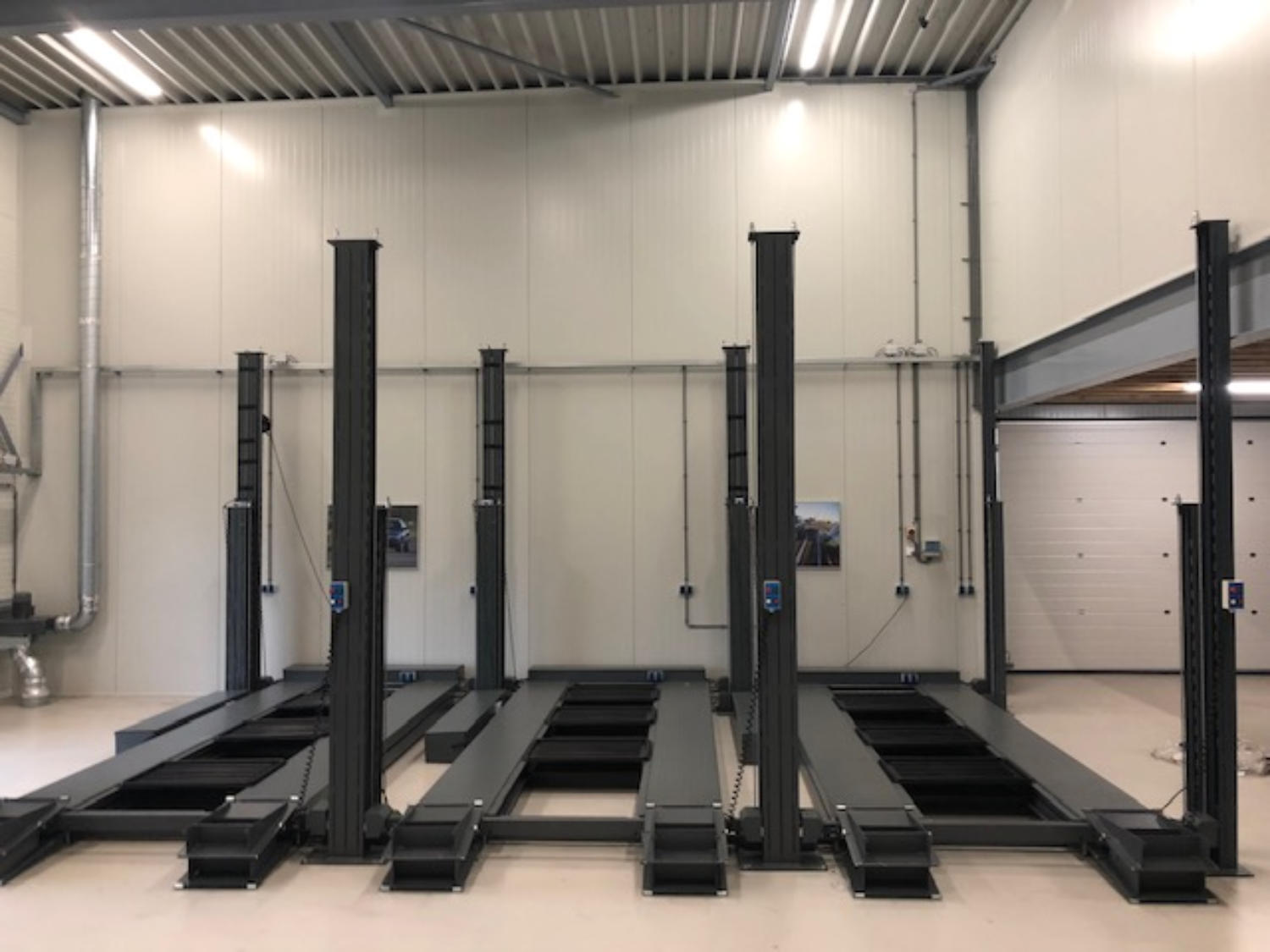

Pictures:
Drawings:
1.QDMY-2-1P 1572MM
2.QDMY-2-1P 1700MM
3.QDMY-2-1P 1800MM
4.QDMY-2-1P 2000MM
5.QDMY-2-1P 1636MM-Columns Combined
Important Remarks
1. We give 8 nos. of oil trays for free.
2. If add galvanized wave plate in the middle part, each set needs
to add +USD400.
3. If add side protection baffles at both side runways, each set
needs to add +USD200.
4. This model is automatic release.
5. The dimension can be customized.
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your nearest sea port).
2. What payment term can you accept?
---100%TT in advance for sample order (1-3 sets)
---30%TT in advance, and 70%TT before shipping or 70%LC at sight
for full container order.
3. How about the loading information and HS Code?
---The HS code is 84289020
---4 Sets/20’GP container ; 8 Sets/40’GP container ; 12 Sets/40’HQ
container
4. How about the lead time?
---20-30 days (In peak season, 45 days).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients;
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is simple structure, usually we send
installation manual to the client, and they can install it
themselves.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
---ISO90001 & CE.
11. Can the posts be shared?
---Yes, the posts can be shared, but price will not be cheaper,
because not save any material.
12. What means columns combined?
---The big lift column and small lift column are attached with each
other closely without any gap. If you need this type, contact our
sales.
