Specifications:
| Brand Name | STMY |
| Model No. | QDMY-BC-2 |
| Product Name | 2 Level Back Cantilever Puzzle Parking System |
| Mode of Drive | Hydraulic+Steel Rope |
| Mode of Operation | Manual Buttons/ IC Cards |
Car Capacity | ≤2000kgs |
| Car Size (L×W×H) | 5000mm×1850mm×1550mm 5000mm×1850mm×1750mm |
Lifting Power / Speed | 4kw 8-12m/min |
Sliding Power / Speed | 0.2kw 7.5m/min |
| Power Supply | 110v/220V/240V/380V/415V (Customized for different country) |
| Safeguard Device | Whole protection and anti-falling devices |
Car Platforms | Galvanized wave plates |
| Surface Treatment | Spray Zinc firstly and then Spray-paint (Twice) |
Color | Grey, Apple Green, Peacock blue (optional) |
| Work Noise | < 65dB ( A ) |
| Package | Standard Export Package |
| Container Informaiton | 16 car spaces into 1x40ft open top container |
| Certificate | ISO9001 and CE |
| Warranty | 12 months for electrical key parts, 5 years for structure |
| HS Code | 84289020 |
Actuating Device
Hydraulic Pump Station+Steel Rope+Car Loading Pallet

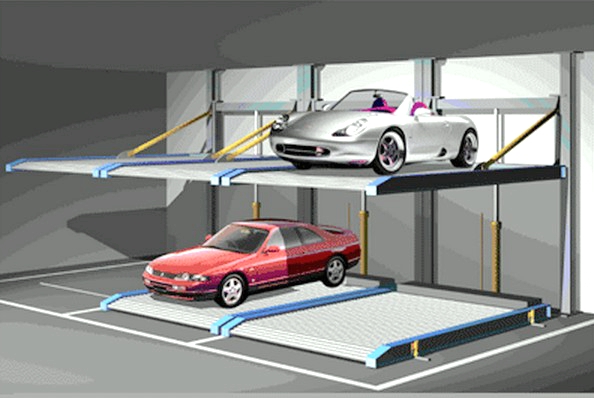

Working Principle
The equipment is designed with 2 levels and multi-bays. There is an
empty car space for exchanging space for other cars. The bottom
level cars can move horizontally, while the top level can move only
vertically. When the car loading pallet reaches the ground, the car
can be driven in or out easily.
Characteristics
Take full use of land to raise more parking spaces;
Reliable hydraulic fast drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC micro-controller programmed and has Liquid crystal
display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony
with surrounding environment.
Protection Devices
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Adapted places
Residential parking lot, apartment,public parking
place,hotels,schools,shopping mall,commercial center and office
buildings,etc...
Online video link
https://youtu.be/thBwy0HLdHQ (same working principle)

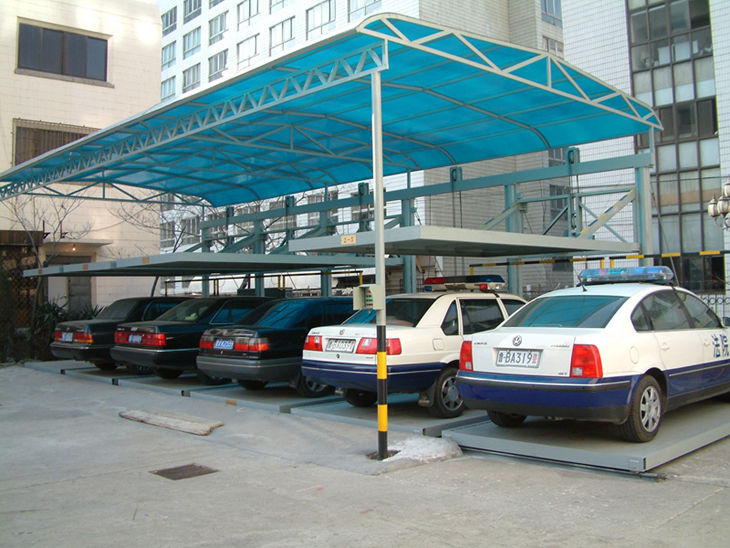

Photos:
Sample drawings
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---15 car spaces can be loaded into 1x40' open top container.
---Open top container can load and unload cargo by crane and
forklift, to save time and
labour cost.
---The MOQ (Minimum Order Quantity is 15 car spaces for this model.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we
send installation manual to the client, and they can install it
themselves.
---We can also send 1-2 engineers to your country to guide the
installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
Note: For a full complete set of drawings, send email to: totti.yu@qdmy-parking.com
