Specifications
| Brand Name | STMY |
| Product Name | 2-12 Levels Smart Puzzle Parking System |
| Model No. | PSH (2-12 Levels) |
| Mode of Operation | IC card/Manual buttons |
| Mode of drive | Hydraulic and Wire Rope |
| Car Capacity | ≤2000, 2500kg |
| Car Size (L×W×H) | ≤5000x1850x1550(mm) ≤5000x1850x2050(mm) |
| Lifting Motor Power/ Speed | 4-22.5 KW / 8-12m/min |
| Sliding Motor Power/ Speed | 0.2 KW/ 7-8m/min |
| Power Supply | 380V/50Hz ; 3Phase 5wire (Customized for different country demand) |
| Safeguard devices | Whole protection and anti-falling frame |
| Malfunction indication | Fault diagnosis code, liquid crystal display |
| Car platforms | Galvanized wave plate |
| Other Parts Treatment | Spray Zinc firstly and then Spray-paint second time (Twice) |
| Color | Grey, Apple Green, Peacock blue (optional) |
| Maximum Working Pressure | 16 MPa |
| Workig noise | ＜65dB |
| HS Code | 84289020 |
| Warranty Term | 12 months for electrical key parts, 5 years for structure |
| Certification | ISO9001 and CE |
Actuating Device
Hydraulic Pump Station + Steel Rope + Car Loading Pallet
Working Principle
The equipment is designed with multi-levels and multi-columns smart
puzzle parking system. It is designed with several empty spaces for
exchanging spaces for other vehicles in each PLC unit. All spaces
can move vertically or horizontally by the drive of hydraulic
except the space in the top level. The top level cars can only move
vertically. When a car needs to park or release, all spaces under
this car will move automatically to form a free channel under this
space, in this case, the space will go up and down freely. When it
reaches the ground, the car will be driven out and in easily.
Characteristics
Take full use of land to raise more parking spaces;
Reliable hydraulic fast drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC micro-controller programmed and has Liquid crystal
display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony
with surrounding environment.
Protection Devices:
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Adapted Places
Residential parking lot, apartment,public parking
place,hotels,schools,shopping mall,commercial center and office
buildings,etc...
Online video link
https://youtu.be/rBF5zcy6V_8
Pictures:

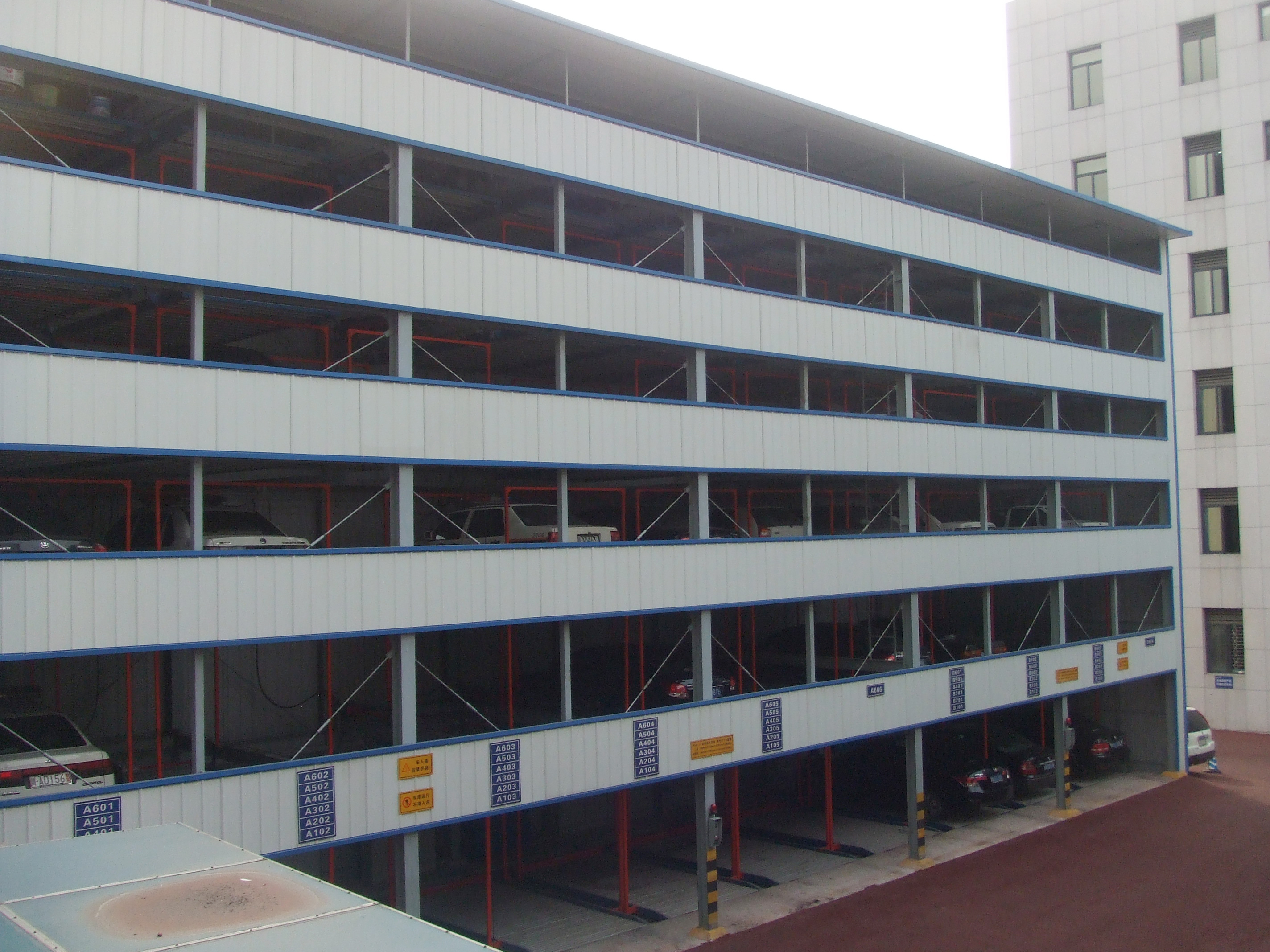

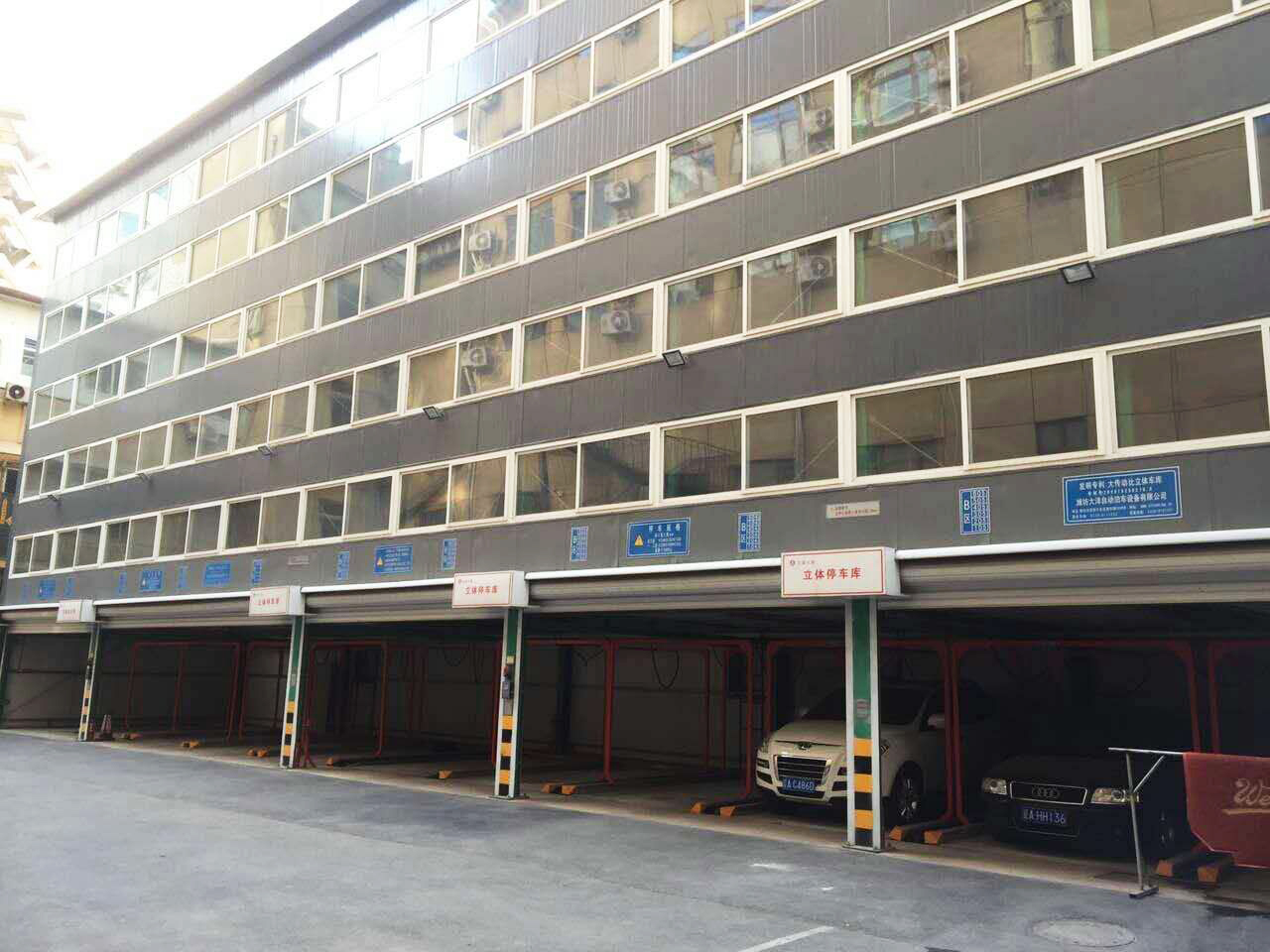

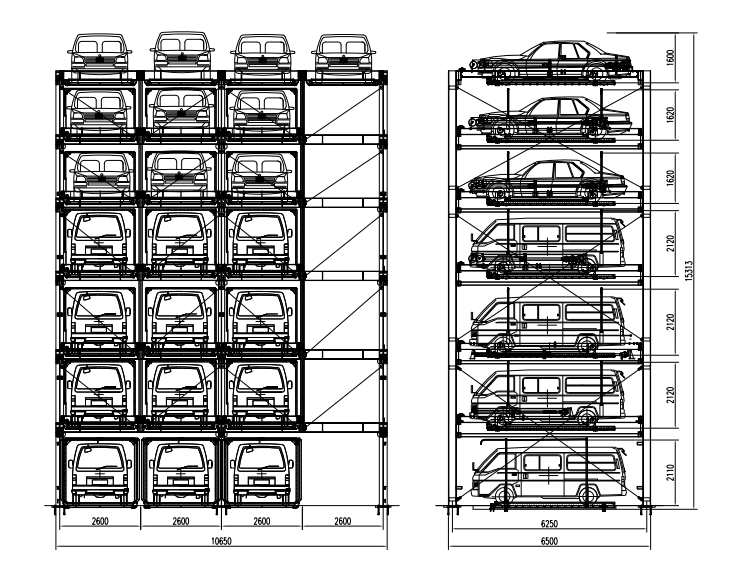

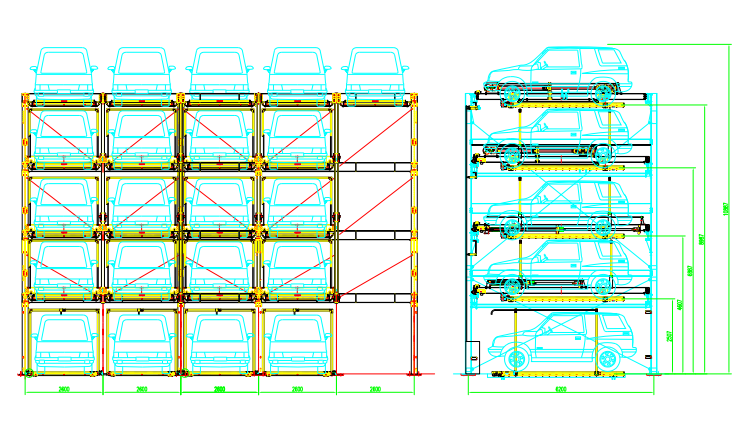

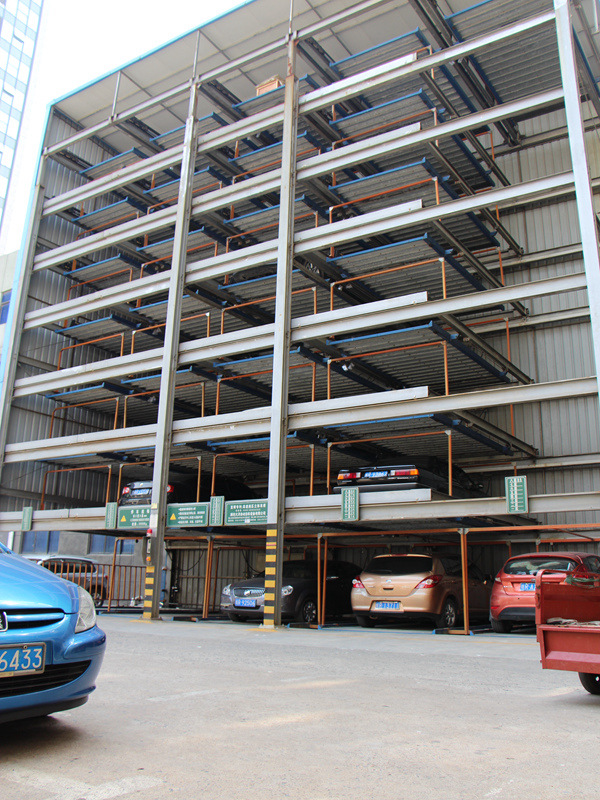

Structures:
Notes:
1. We can do 2 to 9 levels smart puzzle parking system with motor
and wire rope drive mode.
2. We can do 2 to 15 levels smart puzzle parking system with
hydraulic and wire rope fast drive mode.
3. Please provide us your land layout in Autocad or PDF, our
engineer will make design for you and provide best parking solution
for your project.
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---16 car spaces can be loaded into 1x40ft open top container.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we
send installation manual to the client, and they can install it
themselves.
---We can also send 1-2 engineers to your country to guide the
installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
---ISO9001 & CE.
11. More information about puzzle parking system.
---The hydraulic and wire rope mode is faster running speed than
motor and wire rope drive mode;
---It is usually used for public places, where the car moves very
frequently, like hotels, hospitals, shopping centers, airports,
touriest center, government buildings etc...
---If customer perfer hydraulic, we can recommed this type.
Note: For more information, send email to: victoria.zhang@qdmy-parking.com
