Specifications
| Brand Name | STMY |
| Product Name | 2-9 Levels Smart Puzzle Parking System |
| Model No. | PSH (2-9 Levels) |
| Mode of Operation | IC card/Manual buttons |
| Mode of drive | Motor and Wire Rope |
| Car Capacity | ≤2000, 2500kg |
| Car Size (L×W×H) | ≤5000x1850x1550(mm) ≤5000x1850x2050(mm) |
| Lifting Motor Power/ Speed | 3.7 KW / 4-7 m/min |
| Sliding Motor Power/ Speed | 0.2 KW/ 7-8m/min |
| Power Supply | 380V/50Hz ; 3Phase 5wire (Customized for different country demand) |
| Safeguard devices | Whole protection and anti-falling hook |
| Malfunction indication | Fault diagnosis code, liquid crystal display |
| Car platforms | Galvanized wave plate |
| Other Parts Treatment | High grade anti-corrosion paint or hot dipped galvanized (Optional) |
| Color | Red, Blue, Grey, Yellow etc.
(Customized according to user demand ) |
| Maximum Working Pressure | 16 MPa |
| Workig noise | ＜65Db |
| HS Code | 84289020 |
| Warranty Term | 12 months for electrical key parts, 5 years for structure |
| Certification | ISO9001 and CE |
Working Principle
The equipment is designed with multi-levels and multi-rows and each
level is designed
with a spare space as an exchanging space. All spaces can move
vertically or horizontally
by the drive of motor or hydraulic except the space in the top
level. The top level cars
can only move vertically. When a car needs to park or release, all
spaces under this car
will move automatically to form a free channel under this space, in
this case, the space
will go up and down freely. When it reaches the ground, the car
will be driven out and
in easily.
Characteristics
Take full use of land to raise more parking spaces;
Reliable motor with wire rope drives;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC microcontroller programmed and has Liquid crystal
display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony
with surrounding environment.
Protection Device
Including under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limits switch status tracking detection.
Adapted Places
Residential parking lot, apartment, public parking place, hotels, schools, shopping mall, commercial center and office buildings, etc..
Online Video Link
https://youtu.be/thBwy0HLdHQ
http://youtu.be/IuaeE5sNOpU
https://youtu.be/UAlysinqO-w
Pictures

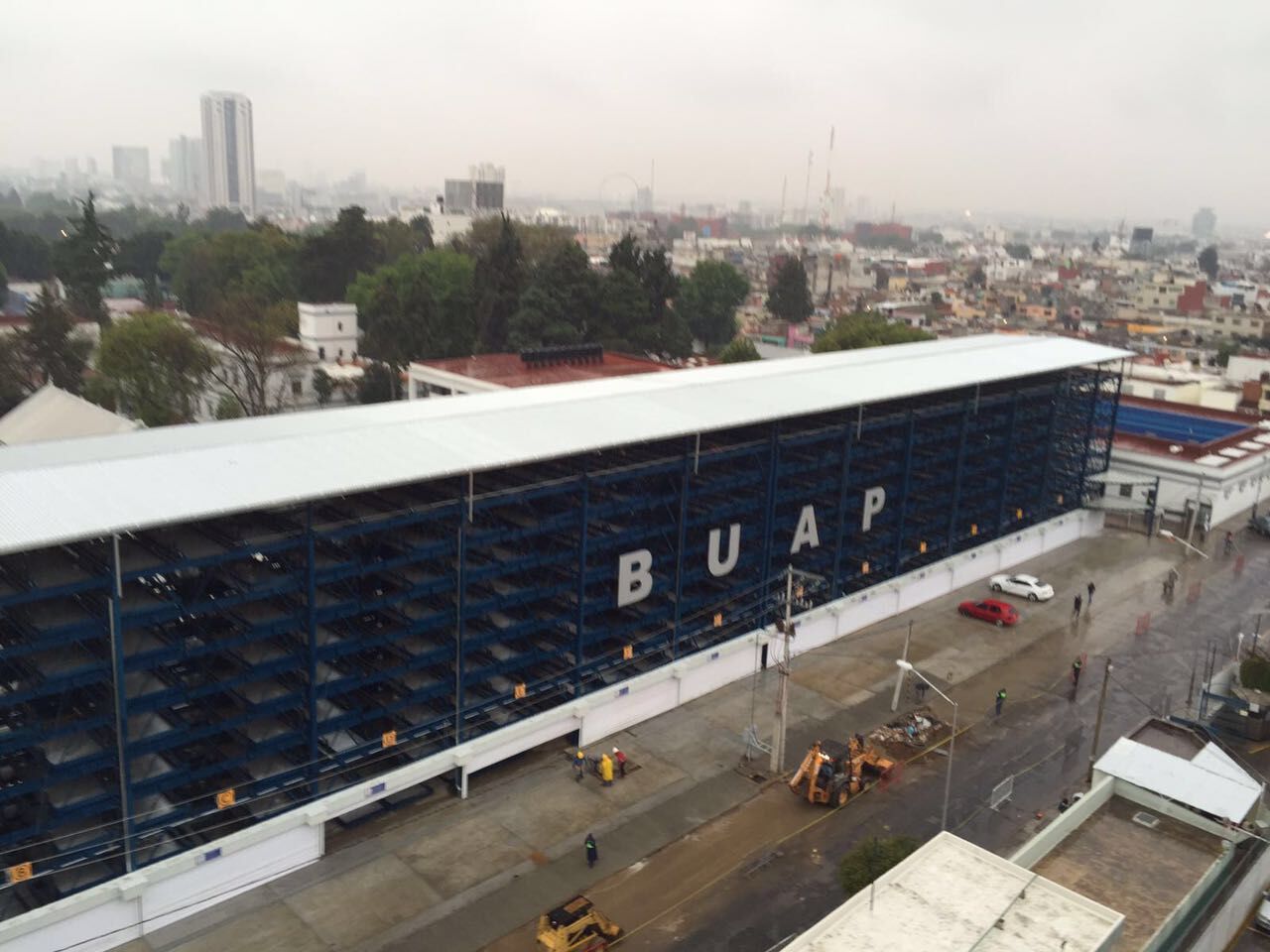

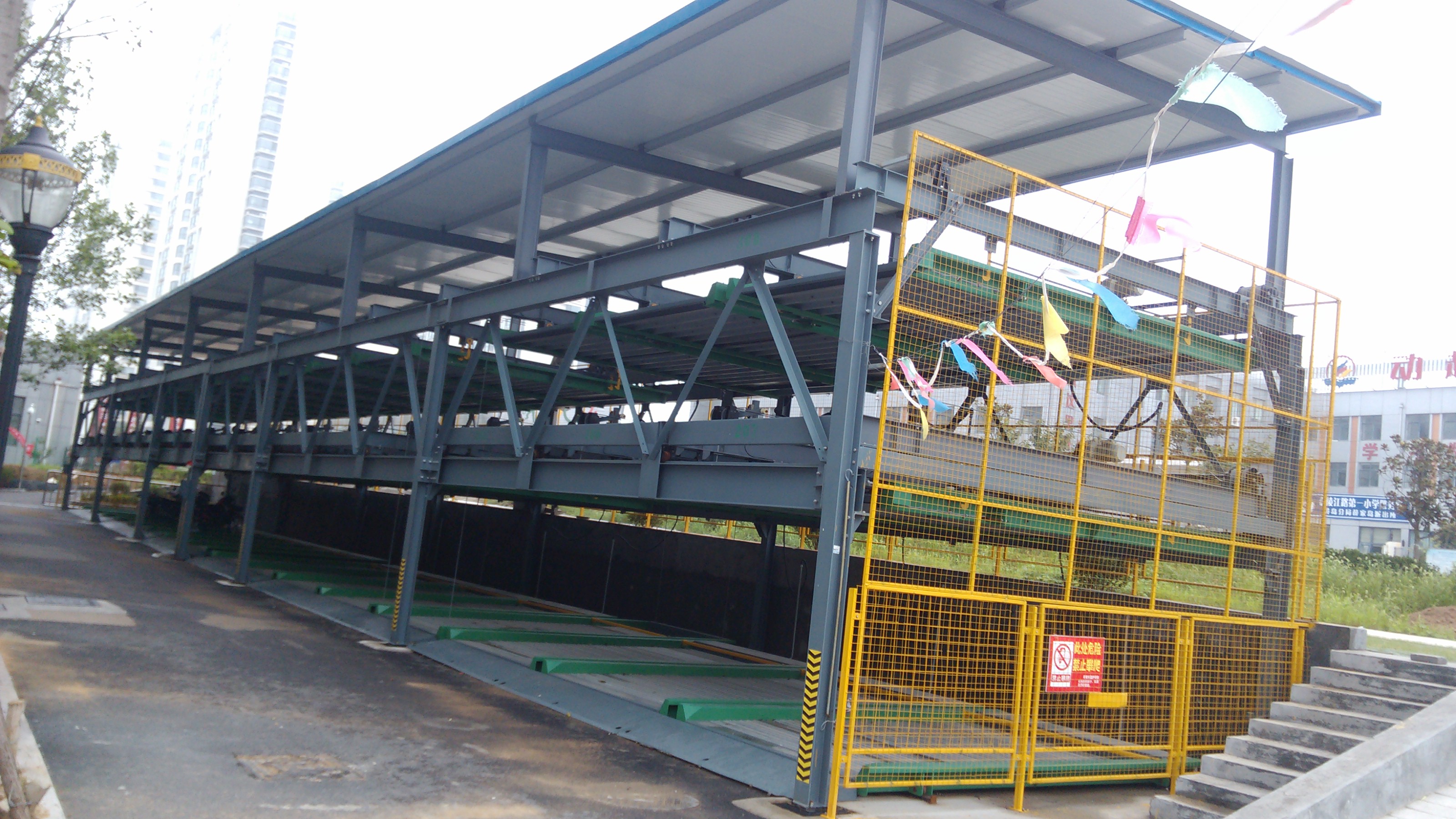

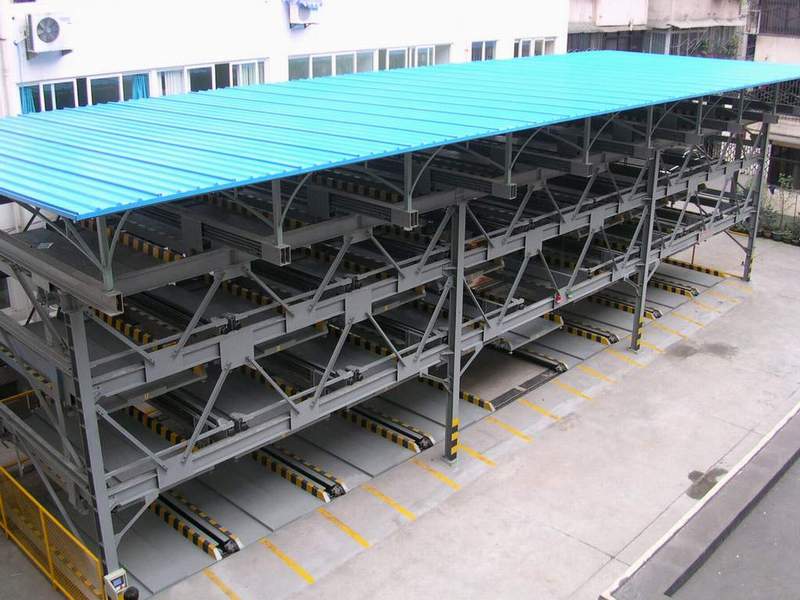

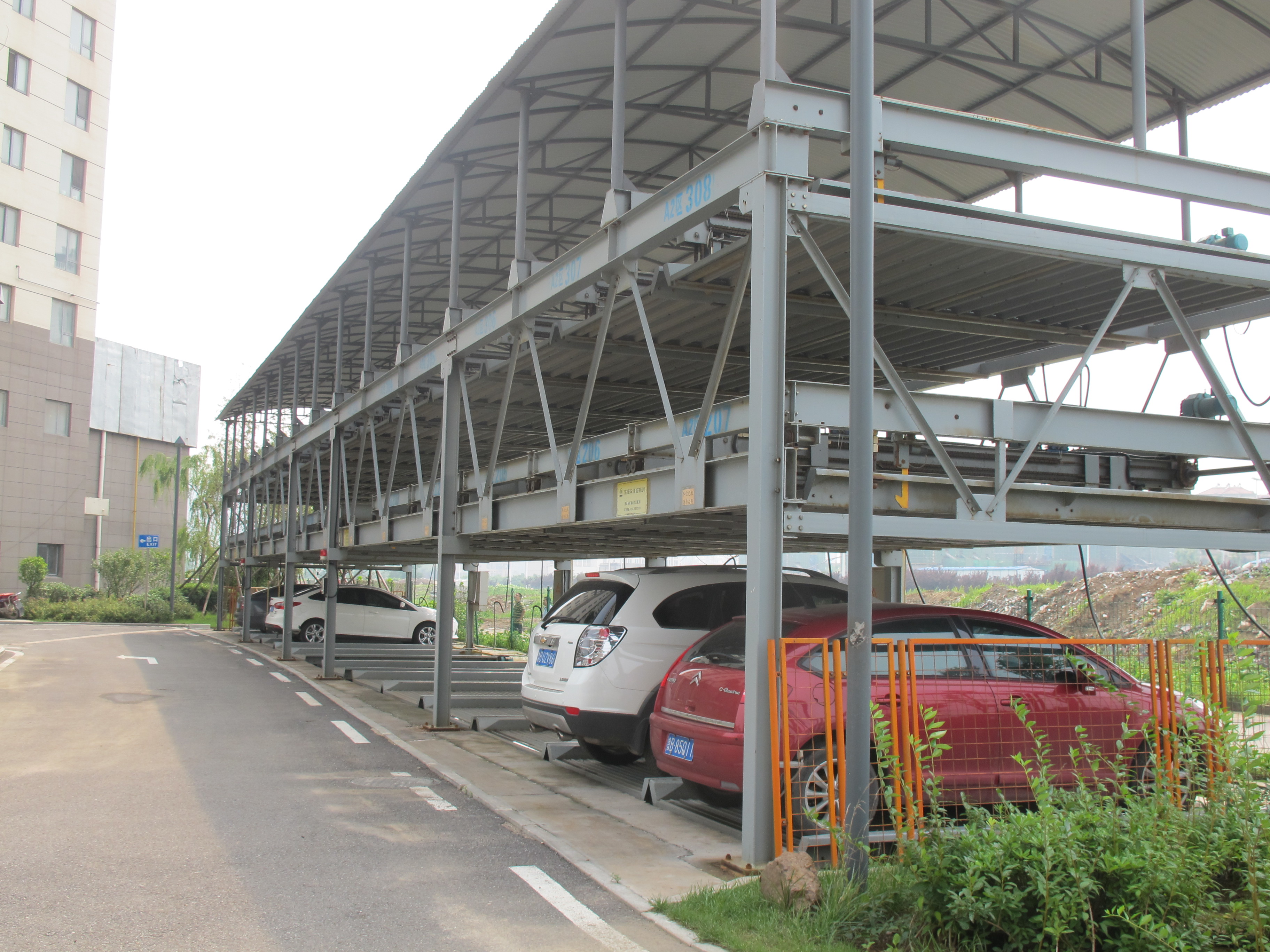

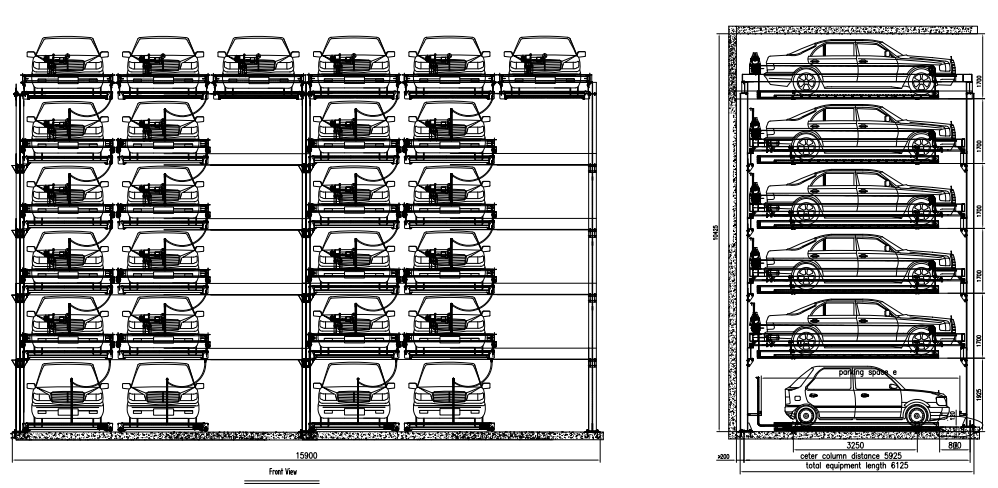

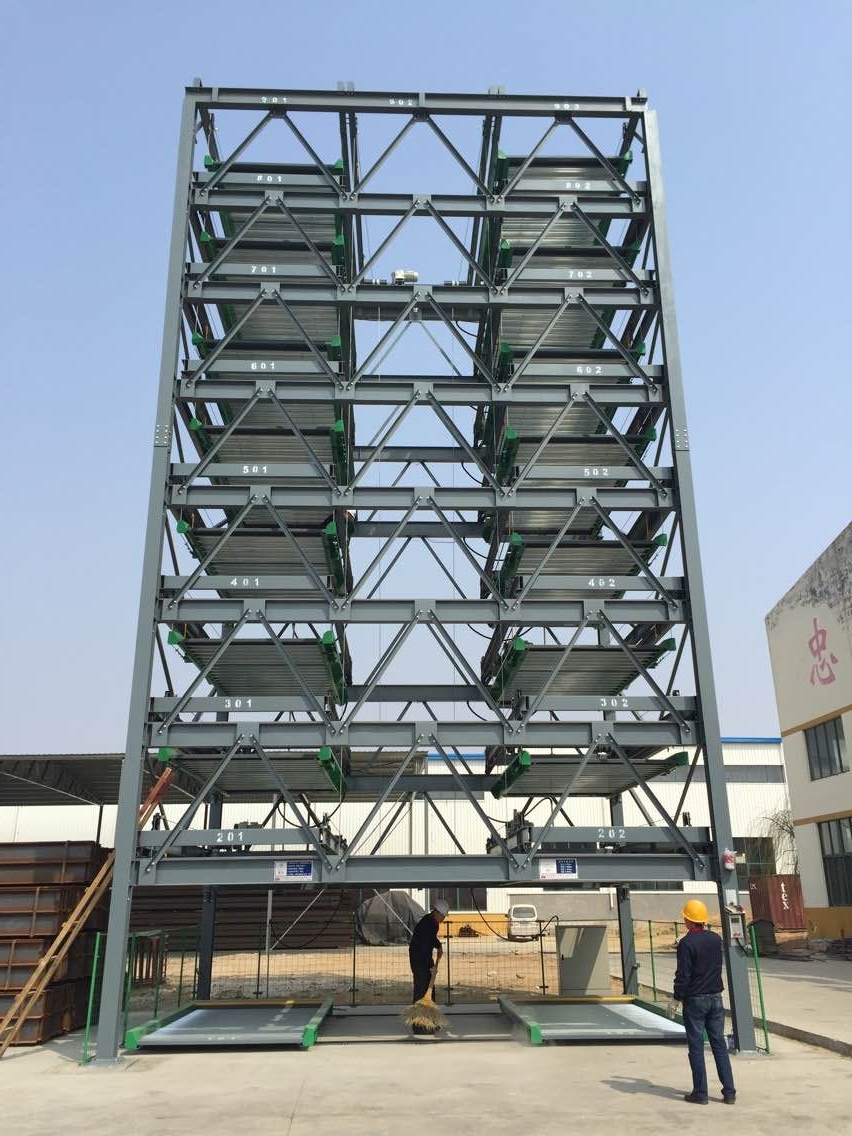

Structures:
Notes:
1. We can do 2 to 9 levels smart puzzle parking system with motor
and wire rope drive mode.
2. We can do 2 to 15 levels smart puzzle parking system with
hydraulic fast drive mode.
3. Please provide us your land layout in Autocad or PDF, our
engineer will make design for you and provide best parking solution
for your project.
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we
send installation manual to the client, and they can install it
themselves.
---We can also send 1-2 engineers to your country to guide the
installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
---ISO9001 & CE.
11. More information about puzzle parking system.
---2 levels puzzle system, we use motor and chain drive mode;
It is usually installed underground for basement parking lot with
3600-4000mm height;
This is the best seller in China. Every new apartment will use this
type.
It also can be used for outdoor, but better have a rain canopy.
---3-9 levels puzzle system, we use motor and wire rope drive mode;
It is usually installed outdoor, for factory or office staffs,
schools, residential areas etc...
---2-15 levels puzzle system, we use hydraulic fast drive mode;
It is usually installed outdoor, for public places, where the car
moves very frequently, like hotels, hospitals, shopping centers, airports, touriest center, government buildings
etc...
Note: For more information, send email to: victoria.zhang@qdmy-parking.com
