Specifications
| Brand Name | STMY |
| Product Name | Pit Design Puzzle Parking System |
| Model No. | PSH-1+1, PSH-1+2, PSH-2+2 |
| Mode of Operation | IC card/Manual buttons |
| Mode of drive | Motor and Chain for PSH-1+1, PSH-1+2 Hydraulic for PSH-2+2 |
| Car Capacity | ≤2000, 2500kg |
| Car Size (L×W×H) | ≤5000x1850x1550(mm) ≤5000x1850x1950(mm) |
| Lifting Motor Power/ Speed | 2.2 KW / 4-6 m/min |
| Sliding Motor Power/ Speed | 0.2 KW/ 7-8m/min |
| Power Supply | 380V/50Hz ; 3Phase 5wire (Customized for different country demand) |
| Safeguard devices | Whole protection and anti-falling hook |
| Malfunction indication | Fault diagnosis code, liquid crystal display |
| Car platforms | Galvanized wave plate |
| Other Parts Treatment | High grade anti-corrosion paint or hot dipped galvanized (Optional) |
| Color | Red, Blue, Grey, Yellow etc.
(Customized according to user demand ) |
| Maximum Working Pressure | 16 MPa |
| Workig noise | ＜65dB |
| HS Code | 84289020 |
| Warranty Term | 12 months for electrical key parts, 5 years for structure |
| Certification | ISO9001 and CE |
Working Principle
The equipment is designed as -1+1, -1+2 or -2+2 levels and
multi-rows smart puzzle parking system. The ground evel is designed
with a spare space for exchanging spaces for other cars. The bottom
and top level cars can be lifted vertically automatically, and the
middle levels cars can be slided horizontally automatically to give
a vacancy for the car from top or bottom space. When the car reach
to the ground level, it can be driven in or out easily.
Characteristics
Reliable motor and chain drive mode;
High speed and fast pick cars;
A whole system for safety protection for cars or personals;
Saving energy and environmental protection；
Advanced PLC microcontroller programmed and has Liquid crystal
display;
Very simple operated with a smart card or manual buttons;
Fashionable and elegant appearance will can be easily in harmony
with surrounding environment.
Protection devices
Safety anti-falling frame;
Including over or under voltage protection;
Wrong or lack phase protection;
Motor overload safety protection;
Overtime/short time safety protection;
Vehicle positioning device;
Vehicle length detection and entrance photoelectric safety device;
Warning light when operation;
Emergency stop device;
Power-off brake;
Fault diagnosis display on liquid;
The limit switch status tracking detection.
Adapted Places
Residential parking lot, apartment,public parking
place,hotels,schools,shopping mall,commercial center and office
buildings,etc...
Pictures

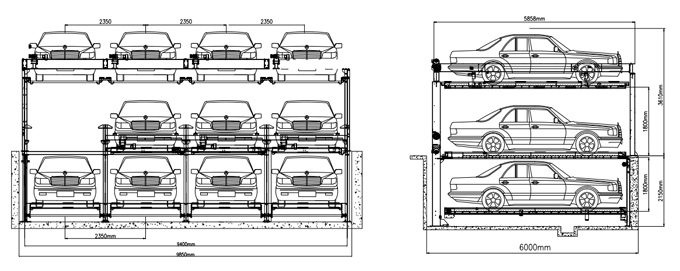

Sample Drawings
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---15-16 car spaces can be loaded into 1x40'GP container.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we
send installation manual to the client, and they can install it
themselves.
---We can also send 1-2 engineers to your country to guide the
installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
---ISO9001 & CE.
11. Can you add the automatic simple safe door at ground level?
---Yes, we can add, it is automatic up and down moment, its system
can be linkage with puzzle system.
Note: For more information, send email to: victoria.zhang@qdmy-parking.com
