Specifications
| Brand Name | STMY |
| Product Name | Pit Design Four Post Parking Lift |
| Model No. | PJS-1+1, PJS-2+1, PJS-3+1 |
| Mode of Operations | Manual buttons/Keys |
| Mode of drive | Motor & Chain / Hydraulic |
| Car Capacity | ≤2000kg, 2500kg, 3000kg |
| Car Size (L×W×H) | ≤5000x1850x1650(mm) ≤5000x1850x1950(mm) ≤5900x2200x2250(mm) |
| Lifting speed | 4-6m/min |
| Lifting Height | 2200mm (Customized) |
| Safeguard device | Whole protection and anti-falling lock device |
| Lifting Speed | 4-6m/min |
| Stop at any height | Yes, can be set |
| Work Noise | < 60dB ( A ) |
| Electricity | 220/380V/415V
(Customized for different country) |
| Motor Power | 5.5-7.5KW |
| Maximum Working Pressure | 16 MPa |
| HS Code | 84289020 |
| Surface Treatment | High-grade anti-corrosion paint |
| Color | Red, Blue, Grey, Yellow etc.
(customized according to user demand ) |
| Certification | ISO9001 and CE |
Working Principle
This is -1+1, -2+1, or -3+1 pit design parking system. The spaces of top and bottom
are united and lifted together. Usually, the bottom space is
underground in the pit. The
top level space is in the same line with the ground. The top level
car can park in and out
directly. The bottom space may park car when it is lifted.
Characteristics
Save land and take full use of the underground space.
It can achieve multiple-units together to raise more parking
numbers.
The middle and bottom levels have functions of dust proof,
rainproof and anti-theft.
This system is simple, reliable and easy to operate.
The top level may be planted with grass and flowers to increase the
green land area.
Outer parking types may be designed as full packing, half packing,
simple packing or
nude packing according to the customers' requirements.
No influence to building sharing light.
Adapted places
Widely using in residential parking lot, hotels, schools, office
buildings, apartment, etc…
Online Video link
PJS-2+1:https://youtu.be/B8OZO5NK_is
PJS-3+1:https://youtu.be/klUpIDjdvSc
PJS-3+1:https://youtu.be/gfHkbz-5xHY

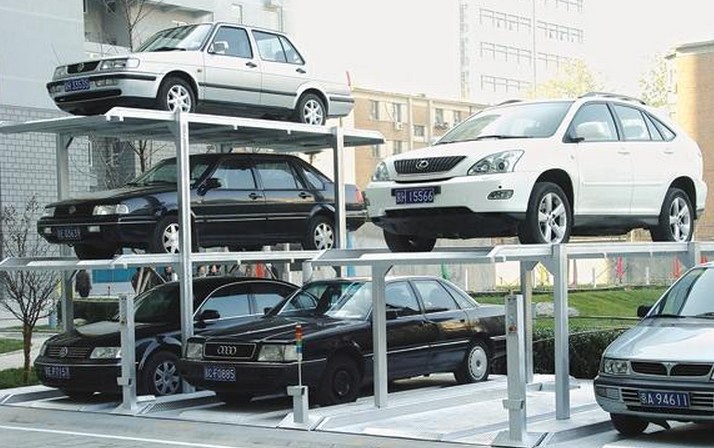

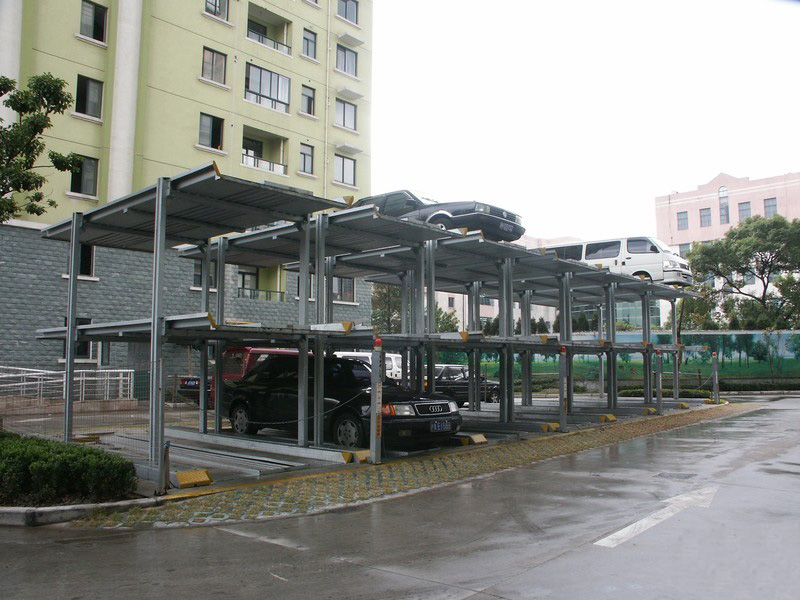

Pictures
Structure and Dimensions:
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost,
tell us your port name).
2. What payment term can you accept?
---30%TT in advance, and 70%TT before shipping.
3. How about the loading information and HS Code?
---The HS code is 84289020
---15 car spaces can be loaded into 1x40'GP container.
4. How about the lead time?
---30-45 days (According to order quantity).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of
the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and
provide the best parking solution to you and your clients.
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach
your engineer about how to install and rountine mantenace
knowledge;
8. How about the installation?
---This model of product is relatively simple structure, usually we
send installation manual to the client, and they can install it
themselves.
---We can also send 1-2 engineers to your country to guide the
installation, commissioning, training your staff.
9. What is warranty term?
---12 months for electrical parts, 5 years for mechanical
structure.
10. What are the certificates?
---ISO9001 & CE.
11. The car size and car height can be customized?
---Yes.
12. What about the platforms.
---Usually the platforms are zinc wave plates, the upper level can
choose zinc wave plates, or diamond pattern plates.
---The U shape whole board platform is only for domestic customer,
not suitable for exporting and load into containers.
13. Can we decorate the top level with grass or floor tiles?
---Yes, you should tell us ahead of time, we will make the top
platform 8-10 cm lower.
Note: For a full complete set of drawings, send email to: totti.yu@qdmy-parking.com
