Product Specifications

Working Principle:

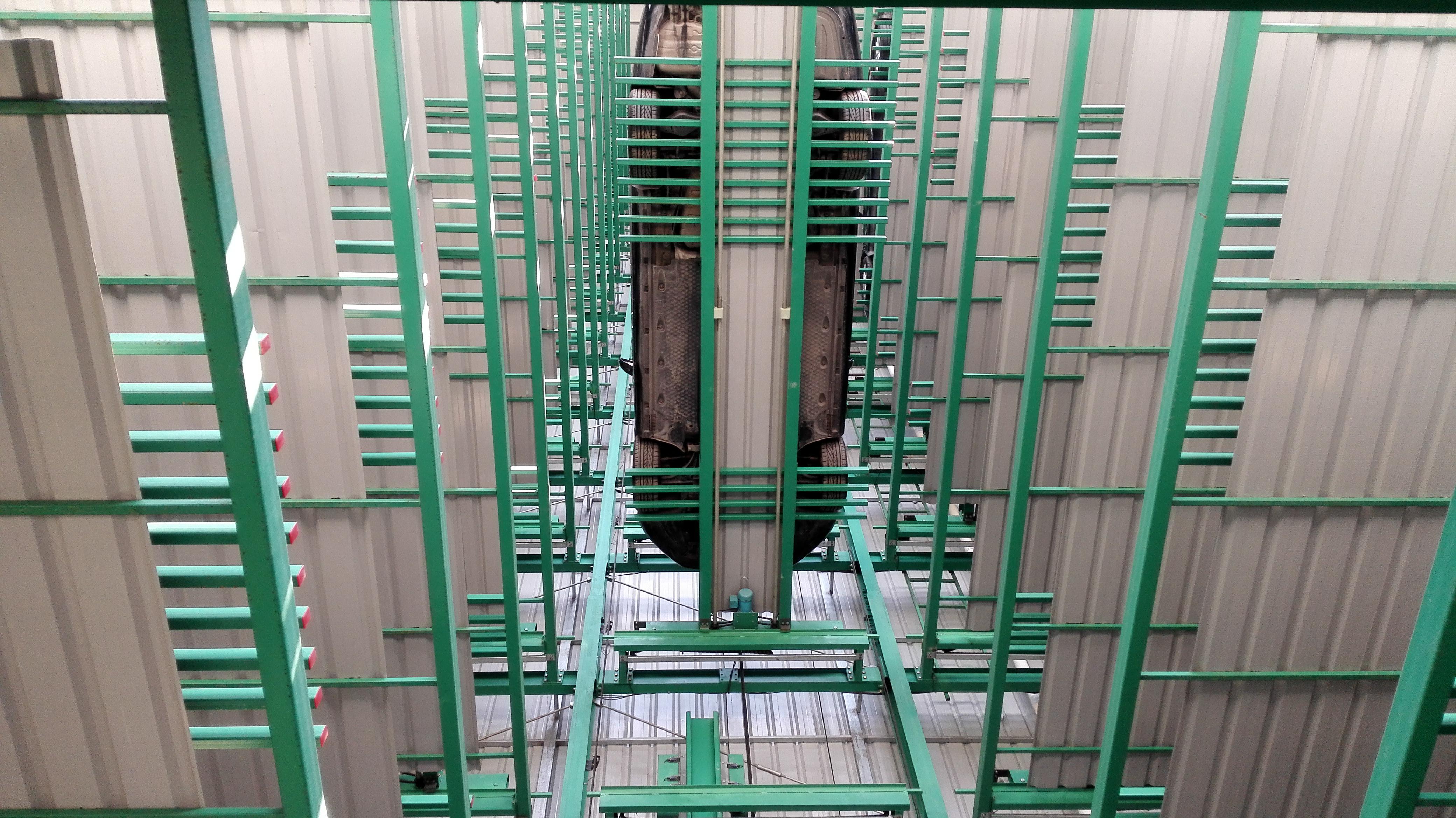

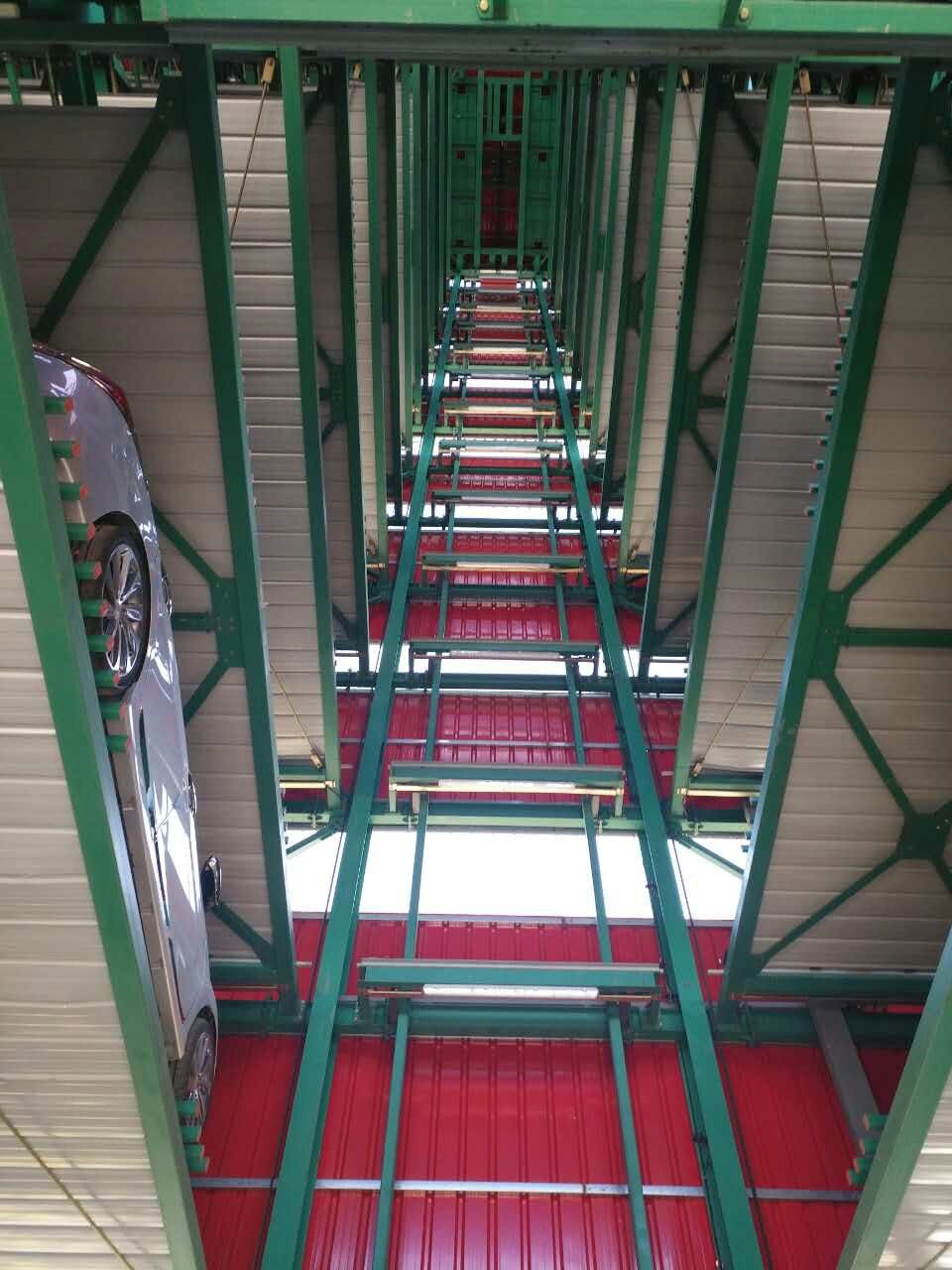

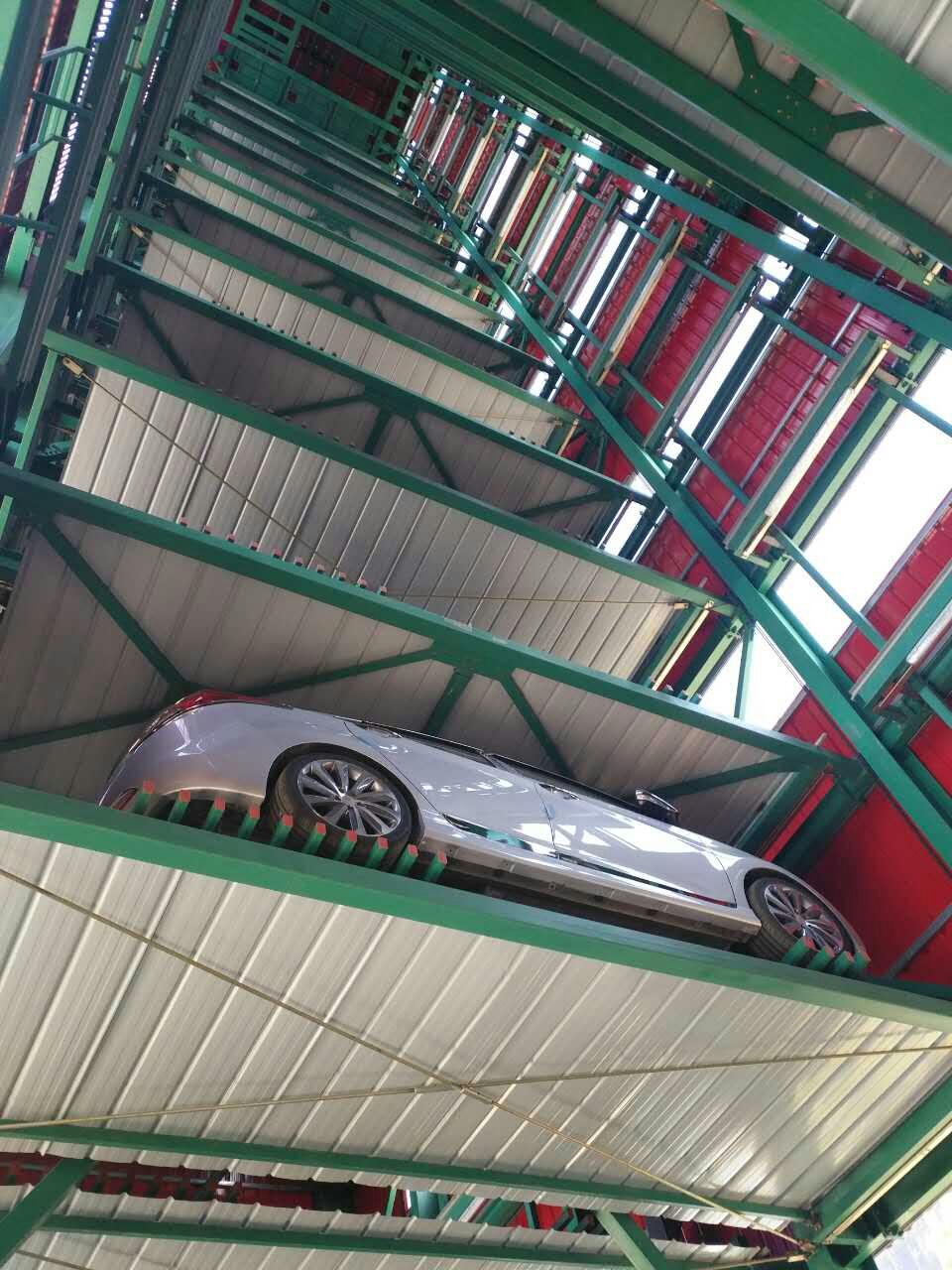

The tower parking system adopts comb pallet with mixed characteristics of puzzle parking and vertical lift parking and it adopts a strong hydraulic or tractor motor fast drive mode.

Characteristics:

It is safer and more reliable using hydraulic or tractor drive;

Advanced PLC micro-controller programmed and has Liquid crystal display;

Very simple operated with a smart card or manual buttons or touch screen;

Saving energy and environmental protection；

Fashionable and elegant appearance will be easily in harmony with surrounding environment;

Adapted Places:

Residential parking lot, apartment,public parking place, hotels, shopping mall, commercial center etc...

Online Video Show:

https://youtu.be/AvfuzYJ7CxQ

https://youtu.be/MXBUKaIM9GA

https://youtu.be/d0JKv_Eg0Lo

Sample Drawings:

Important Tips:

A: Hydraulic & Wire Rope Fast Drive Mode

1) Can do 8 to 15 floors only, it is fast running speed.

2) Can do 3 wides, 4 wides, 5 wides and maximum 6 wides if land size is wider enough.

3) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

4) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

5) The car turntable at ground level is an optional, its function is to rotate in 360 degree to adjust car head for customer. If add it, each car space will be +USD350 more expensive and will lose 2 parking spaces.

6) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).

B: Motor Traction & Wire Rope Very Fast Drive Mode

1) Can do 8 to 35 floors, it is very fast running speed.

2) Can do 3 wides only for each tower system.

3) Can do all steel structure (we provide), or mixed steel & concrete structure.

(we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

4) Can do structure all above ground, half above & half underground, or all underground. (depends on customer request).

5) Usually it has a car turntable at ground level to adjust car head for customer, and will lose 2 parking spaces at ground level.

6) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).

C: Conclusion:

1) For 8-15 floors, hydraulic drive mode is a better option.

2) 16-35 floors, motor traction drive mode is a better option.

3) Ask customer to provide the land layout, we can make design and provide the best parking solution for customers.

FAQ

Qingdao Shitai Maoyuan Trading Co.,ltd  is  located in Qingdao city of China. It is the top manufacturer to research, design, produce and sales of car lifts, steel structures, car parking lifts, intelligent car parking system, three dimensional garage equipment etc. We have a skilled professional team and have the world class production lines, including many sets of precison CNC procession equipment.

and is a consulting firm specializing in researching, designing, manufacturing, installation, maintenance and Imp & Exp commerce of parking equipment

The registered capital  is 42,000,000 RMB ($7 million), and we have 5 senior engineers, 20 engineers, and 230 technicians, we invested big amount for introduction of foreign parking equipment talent from Japan, Korea, and Taiwan, with combination of Chinese national conditions we have done many reform and innovation, and developed lift/sliding type, simple lift type, parallel conveyor type, elevator type, and car lift etc six type and dozens of mechanical parking equipment.

The developed technology is strong backing of qualified products. The developed processing machines and mechanical processing power is the reliable guarantee. Now we have two complete lightweight steel structure processing line, and one heavyweight steel structure processing line, one H steel CNC rework processing line, three auto shot blaster machines, alumina-spray machine and many type of mechanical processing equipment. The capacity of manufacture is more than 30,000 parking space, and can do OEM for parking equipment industry and related industry.

We hope cooperate with you and create bright future, with the Maoyuan philosophy “honesty, innovation, high-quality and win-win cooperation”

Our target is establish international brand, and attach importance to management quality and reputation, we passed ISO9001 quality system certificate in 1999,GB/T28001-2001 the health and safe management system certificate, ISO14001:2004 environment management system certificate and ISO9001:2008 international quality management system certificate. We got great honor from nation such as AAA grade high-integrity enterprise, technology center of industry, high and new technology enterprise, etc. with excellent management team, advanced equipment and technology, high class standard, strict management and perfect after sales service we have won the trust of customers. We have spread our market to USA, Euro, Russia, etc. and won reputation from customers abroad.
