Product Specifications

Working Principle:

1)This Fully Automatic Plane Movement Parking System can park or pick cars automatically with a movement of vertical elevator and the reciprocating movements of conveyor on the same level. The car will be turned into right direction when it reaches into the parking room with the movement of a rotation pallet, and then the car will be driven in or out by the car owner easily.

2) When storing a car: The driver drives the vehicle to the entrance and exit of the equipment and swipes the card; The automatic door opens and the driver drives the vehicle into the access room; At the prompt of the guidance system, the driver stops the vehicle and leaves the vehicle; The driver leaves the access room and swipes again at the entrance and exit; The automatic door is closed, the equipment performs centering and rectification on the vehicle, etc. At the same time, the elevator (with traverse trolley and carrier) runs to be flush with access floor; The carrier conveys the vehicle to the traverse trolley on the elevator; The elevator runs up to the target layer; The traverse trolley moves horizontally to the corresponding position of the parking space; The carrier conveys the vehicle to the target parking space; the storage is completed.

3) When picking a car: The driver swipes the card at the entrance and exit of the device; The traverse trolley moves horizontally to the target parking space; The carrier conveys the vehicle to the traverse trolley; At the same time, the elevator runs to be flush with the target layer; The traverse trolley moves to the elevator; The elevator runs to be flush with access floor; The carrier conveys the vehicle to the access room. The automatic door is opened, and the driver drives the vehicle out of the room.

Adapted Places:

Public parking place, hotels, shopping mall, hospitals, commercial center, Residential parking lot, apartment, etc...

Major Components:

The equipment consists of seven major components, including Steel Structure, Elevator, Traverse Trolley & Carrier, Vehicle Centering System, Control System, Electrical System and Operating system.

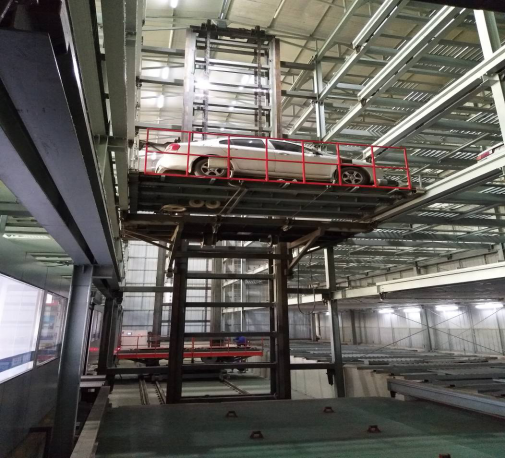

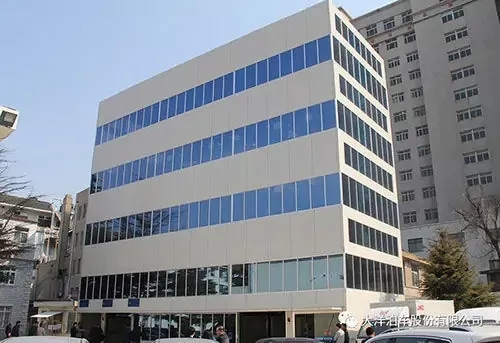

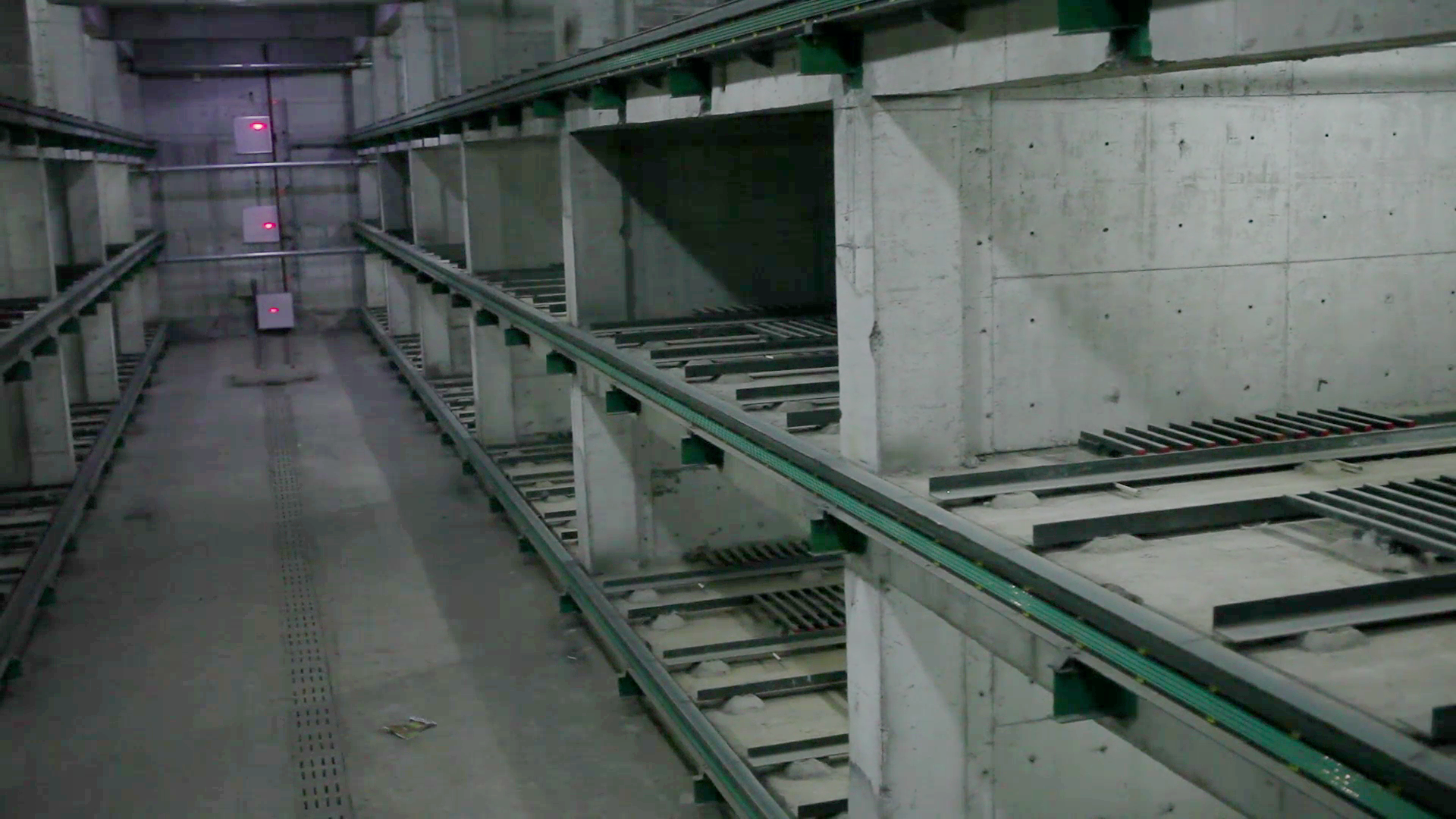

Case Photos:

Sample Drawings:

All Above Ground

All Underground Ground

Important Tips:

1) Can do 5 to 10 floors.

2) Can do all steel structure (we provide), or mixed steel & concrete structure. (we provide steel structure part, the concrete structure part will be built by customer themselves at local.)

3) We can do some floors for SUVs or 100% SUVs spaces (according to customer's request).

FAQ

Qingdao Shitai Maoyuan Trading Co.,ltd  is  located in Qingdao city of China. It is the top manufacturer to research, design, produce and sales of car lifts, steel structures, car parking lifts, intelligent car parking system, three dimensional garage equipment etc. We have a skilled professional team and have the world class production lines, including many sets of precison CNC procession equipment.

and is a consulting firm specializing in researching, designing, manufacturing, installation, maintenance and Imp & Exp commerce of parking equipment

The registered capital  is 42,000,000 RMB ($7 million), and we have 5 senior engineers, 20 engineers, and 230 technicians, we invested big amount for introduction of foreign parking equipment talent from Japan, Korea, and Taiwan, with combination of Chinese national conditions we have done many reform and innovation, and developed lift/sliding type, simple lift type, parallel conveyor type, elevator type, and car lift etc six type and dozens of mechanical parking equipment.

The developed technology is strong backing of qualified products. The developed processing machines and mechanical processing power is the reliable guarantee. Now we have two complete lightweight steel structure processing line, and one heavyweight steel structure processing line, one H steel CNC rework processing line, three auto shot blaster machines, alumina-spray machine and many type of mechanical processing equipment. The capacity of manufacture is more than 30,000 parking space, and can do OEM for parking equipment industry and related industry.

We hope cooperate with you and create bright future, with the Maoyuan philosophy “honesty, innovation, high-quality and win-win cooperation”

Our target is establish international brand, and attach importance to management quality and reputation, we passed ISO9001 quality system certificate in 1999,GB/T28001-2001 the health and safe management system certificate, ISO14001:2004 environment management system certificate and ISO9001:2008 international quality management system certificate. We got great honor from nation such as AAA grade high-integrity enterprise, technology center of industry, high and new technology enterprise, etc. with excellent management team, advanced equipment and technology, high class standard, strict management and perfect after sales service we have won the trust of customers. We have spread our market to USA, Euro, Russia, etc. and won reputation from customers abroad.
