Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts

    Buy cheap Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts from wholesalers

    Buy cheap Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts from wholesalers
    • Buy cheap Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts from wholesalers

    Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts

    Ask Lasest Price
    Brand Name : QDMY
    Model Number : QDMY-2-6P
    Certification : ISO90001 & CE
    Price : $4800-6500/Set
    Payment Terms : 30%TT in advance, 70%TT before shipping
    Supply Ability : 1000 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Double Wide Automative Lift for 6 Cars/ 2 Levels Parking Lifts for 6 Cars/ Triple Wide Parking Lifts

    Product Specifications:

    Brand NameSTMY
    Product NameDouble wide automotive lift 6 cars
    Model No.QDMY-2-6P
    Mode of DriveHydraulic and Wire Rope
    Each Car Capacity≤2000kg or 2500kg or 3000kg
    Lifting Height2000mm (Customized)
    Mode of OperationManual buttons / Keys (Optional)
    Motor Power3.0 Kw
    Photoelectric SensorPrevent people or cars entering by mistake during operation
    Anti-falling DeviceMulti-level locking holes
    Warning DeviceBuzzer alarming during operation
    Rise/Fall Time50/40s
    Working Noise< 60dB ( A )
    Voltage110V/220V/230V/240V/380V/415V (Customized )
    PlatformGalvanized wave platform
    Surface TreatmentHigh-grade anti-corrosion powder coating
    ColorRed, Blue, Grey, Yellow, Black, etc. (Customized )
    HS Code84289020
    CertificateISO9001 and CE
    Warranty Term12 months for electrical parts, 5 years for structure

    Working Principle:
    This four post triple lift including 6 car spaces. The upper level three car spaces are united as a whole unit and can be lifted up and down together. The bottom level cars can go in and out directly. When the spaces in the bottom level are spared, the spaces in the upper level will be lifted down to ground. Then the cars will go out and in freely.

    Description:
    1. Good choice for parking and simple repair
    2. Hydraulic driven, cable lifting system
    3. Manual or electric single point release
    4. Automatic lock system ensure safety in different heights
    5. Maintenance free load bearing
    6. Immovable runway
    7. Stop blocks in all posts for added safety
    8. Moveable drip trays prevent pollution of vehicle on floor
    9. Caster kit for moving the lift easily
    10.Mold machining through the whole process so that the parts are universal and interchangeable
    11.120% capacity Dynamic load text and 150% static load test
    12.Italian oil seal to make sure no oil leakage
    13.Electromagnetic valve with urgent manual drop function
    14.Optional Manual pump for lock release in case of power off.
    15.Optional 24V Control box and Electromagnetic valve

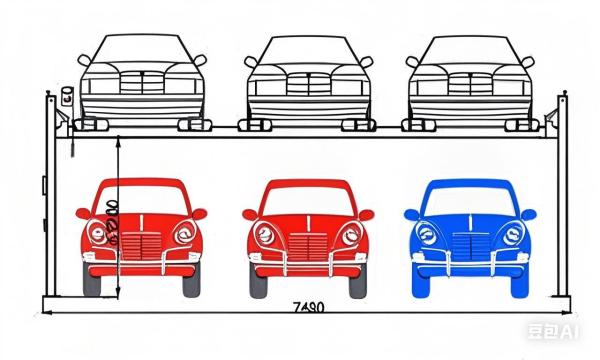

    Drawings:

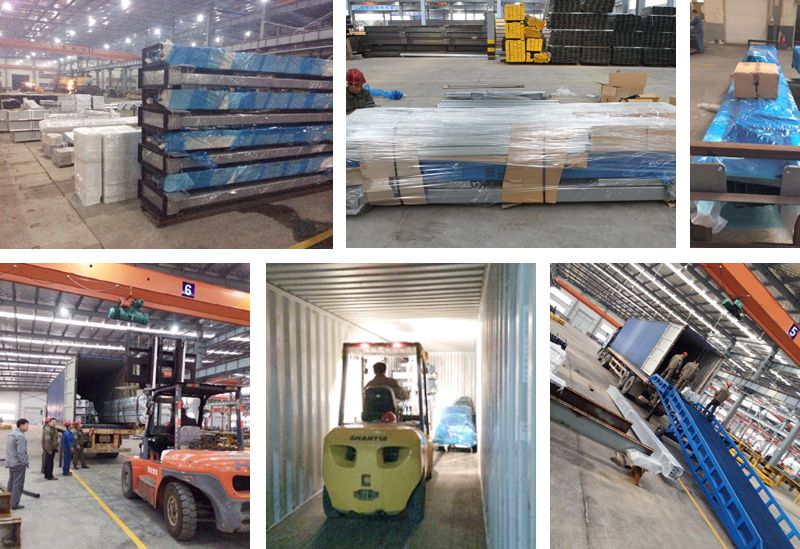

    Package and Shipping Method:


    FAQ

    1. What trade term you can accept?
    ----FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

    2. What payment term can you accept?
    ----Often we accept TT or LC. For small sample order, we can accept ESCROW, PAYPAL, WESTUNION, etc...

    3. How about the loading information and HS Code?

    ---For this model, 5 sets /20'GP containerl 10 sets/40'GP container
    ---The HS code is 842542900
    4. How about the lead time?
    ---30 to 45 days (according to order quantity);
    5. Can you provide OEM service?
    --Yes, we can provide OEM service according to the requirement of the client;
    6. Can you make design for our land?
    --Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
    7. Do you provide trainning services:
    --Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
    8. How about the installation?
    --This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
